Why SMT Lines Are the Heart of Modern Electronics Manufacturing

In today's fast-paced electronics industry, quality, speed, and reliability are more important than ever. From medical devices and industrial controls to automotive systems and consumer electronics, every product depends on the precision of its printed circuit board (PCB). At the heart of this process is the Surface Mount Technology (SMT) production line.

For electronics manufacturers like ACL, investing in advanced SMT technology means delivering high-quality PCB assemblies with greater accuracy, consistency, and efficiency - helping customers bring products to market faster and with complete confidence.

What is an SMT Line?

Surface Mount Technology (SMT) is the process of placing electronic components directly onto the surface of a PCB. It has become the global standard for electronics manufacturing due to its speed, precision, and ability to handle increasingly complex designs. A typical SMT production line includes several automated stages:

·      Solder paste printing

·      Solder Paste Inspection (SPI)

·      High-speed pick-and-place machines

·      Reflow soldering

·      Automated Optical Inspection (AOI)

·      X-ray inspection (where required)

·      Final quality control and testing

Together, these systems ensure every PCB is manufactured to exact specifications.

Why SMT Technology Matters

Precision Manufacturing
Modern PCBs can contain thousands of tiny components, many of which are too small to place accurately by hand. Automated SMT equipment positions these components with exceptional precision, resulting in improved product quality, fewer defects, and greater long-term reliability.

Faster Production
Today's SMT machines can place tens of thousands of components per hour while maintaining consistent accuracy. This enables manufacturers to reduce lead times, respond quickly to customer demand and accelerate new product introductions.

Consistent Quality
Automation removes many of the variables associated with manual assembly. Every PCB is built using the same controlled process, ensuring repeatable quality across prototype, low-volume and high-volume production. This level of consistency is particularly important for industries where reliability is critical, including medical, automotive, aerospace, and industrial electronics.

Built-In Quality Assurance
Modern SMT lines do not just assemble products - they continuously inspect them throughout the manufacturing process. Solder Paste Inspection (SPI) verifies the correct amount of solder paste has been applied before components are placed.

Automated Optical Inspection (AOI) uses high-resolution cameras to detect missing, misplaced or incorrectly orientated components, helping identify defects before products leave the production line.

For more complex assemblies, X-ray inspection allows hidden solder joints, such as those found beneath BGA packages, to be inspected without damaging the board.

This combination of automated inspection technologies significantly improves first-pass yields and ensures consistently high-quality assemblies.

Flexibility for Every Project
Whether producing prototypes, low-volume specialist products or larger production runs, modern SMT lines provide the flexibility to adapt quickly to changing customer requirements.

Fast machine changeovers and programmable production systems allow multiple product types to be manufactured efficiently while maintaining the same high-quality standards.

How ACL's SMT Capability Benefits Customers

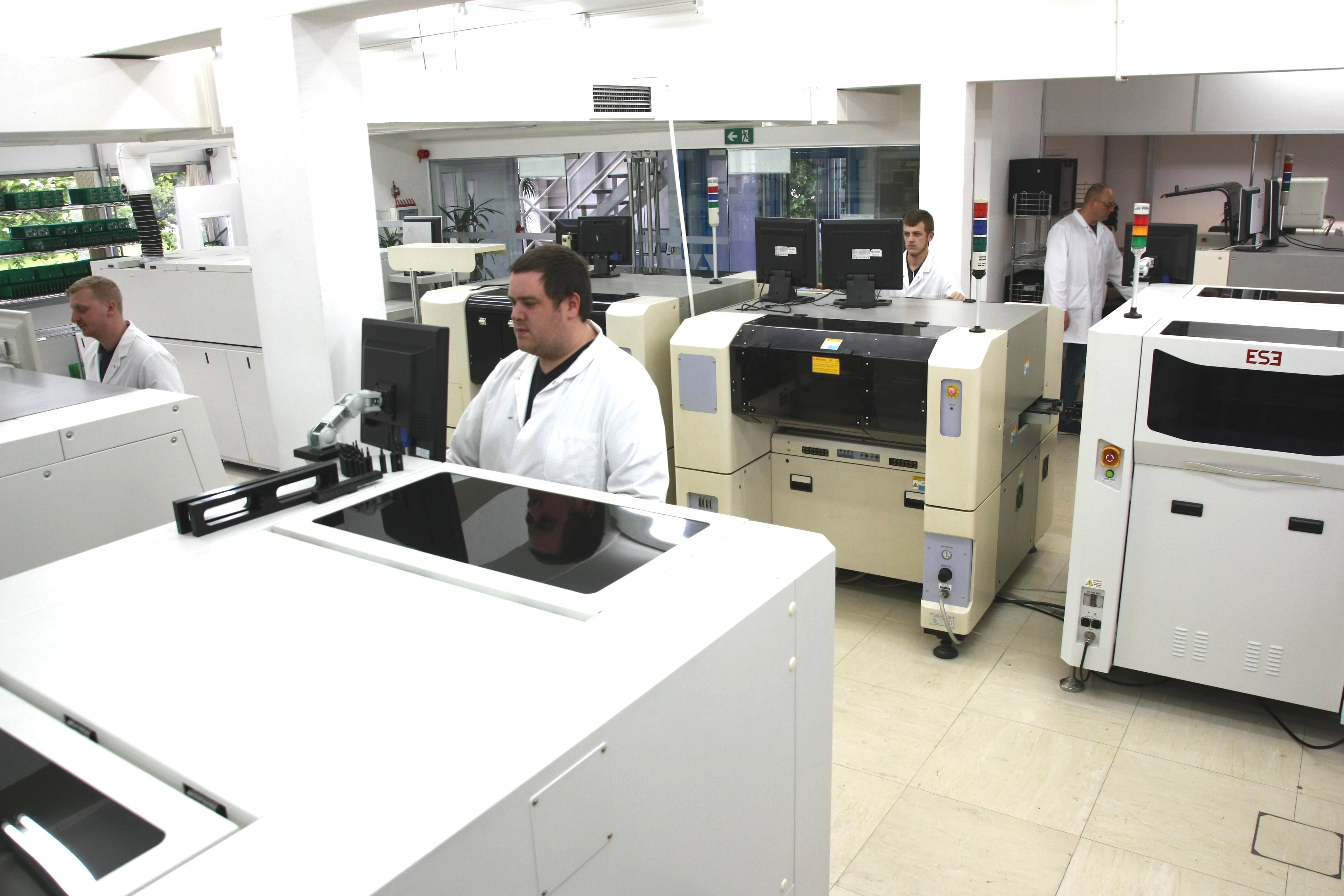

At ACL, our SMT production lines are central to delivering reliable, high-quality electronics manufacturing services. By investing in advanced manufacturing technology and skilled engineering expertise, we help customers reduce risk, improve product quality, and shorten time to market. Our customers benefit from:

·      High-precision automated assembly

·      Faster production and shorter lead times

·      Comprehensive inspection and quality assurance

·      Flexible manufacturing from prototype to production

·      Reliable, repeatable processes for consistent results

·      Experienced engineering support throughout every project

Investing in the Future

As electronic products become smaller, faster, and more complex, manufacturing technology must continue to evolve. Modern SMT lines provide the accuracy, speed and quality control needed to meet these increasing demands.

At ACL, continual investment in SMT technology ensures we remain at the forefront of electronics manufacturing, providing customers with dependable, high-quality PCB assembly services that support innovation across a wide range of industries.

Whether you're developing a new product or scaling an existing one, ACL's advanced SMT capabilities provide the precision, reliability and manufacturing expertise needed to turn your ideas into market-ready products.
